We showed up outside of UBIQ, unloaded our gas, wheeled the bikes into the elevator and positioned them on the second floor. There’s something about hardwood, white walls and track lighting that adds another grand to the value of your bike. Something to keep in mind when it comes to selling your wheels.

—Devyn

Simplifying the redundant stock wiring harness on my CB500T was absolutely necessary in my mind when I started planning out my build. I ditched the stock handle bar switches and replaced them with 2 toggles to control power to the lights and coil seperately. Here’s a basic overview of the light switch… a lo/kill/hi switch. Besides being able to black-out my lights / run from the cops switch, it also comes in handy to conserve battery power while adjusting the timing or having to start the bike on a low battery.

1. Double Pole Double Throw (DPDT) switch. I bought mine from McMaster-Carr. The switch has 6 poles and 3 switch positions (ON-OFF-ON).  For comparison, the wired switch, pictured below,  is a Single Pole Double Throw (SPDT) which has 3 poles and can only switch 1 circuit.

2. The DPDT switch has the functionality to switch 2 circiuts which is what I needed.

Circuit #1: low beam - OFF – high beam.

Circuit #2: tail/gauge lights - OFF – tail/gauge lights.

Here is the switch wired up. The black wire (1 to 2 wire) is hot when the ignition is on and feeds both poles. So to explain, the first ON position turns on the low beam and tail/gauge lights and the second ON position turns on the high beam and tail/gauge lights.

3.  Switch mounted in my gauge bracket. The wires are heat wrapped and run into the headlight bucket.

4. My slimmed down wiring diagram so you can see how the switches connect into the rest of the wiring. (color version)

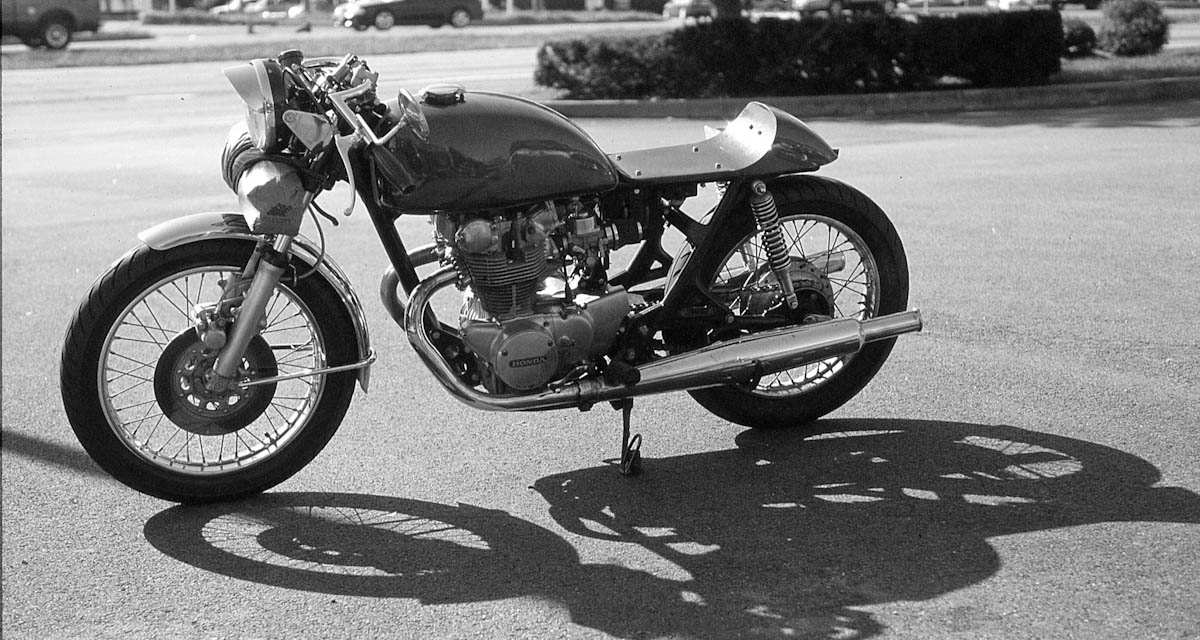

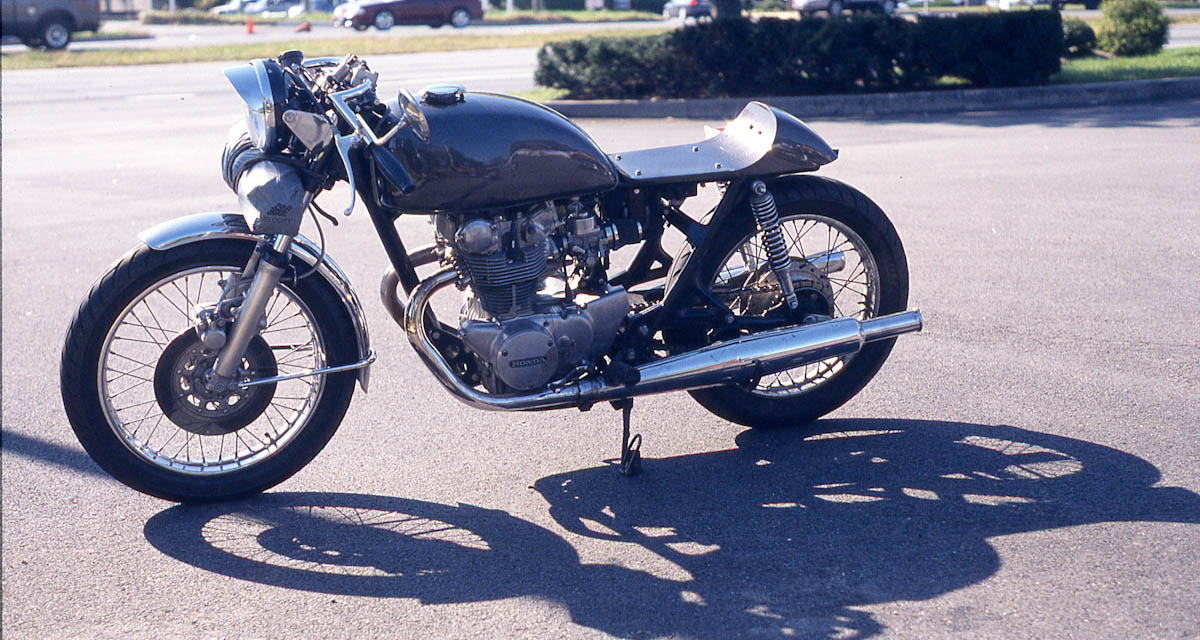

The 500T is back in action!

Thanks to everyone who helped out with parts, advice, and just the whole process.

-adam

…Putting the cycle together this weekend.

Laid down the final paint, Rustoleum oil rubbed bronze. Came out better than I expected and depending on how fast this cures I might have pictures of a running bike! ha
-Adam
